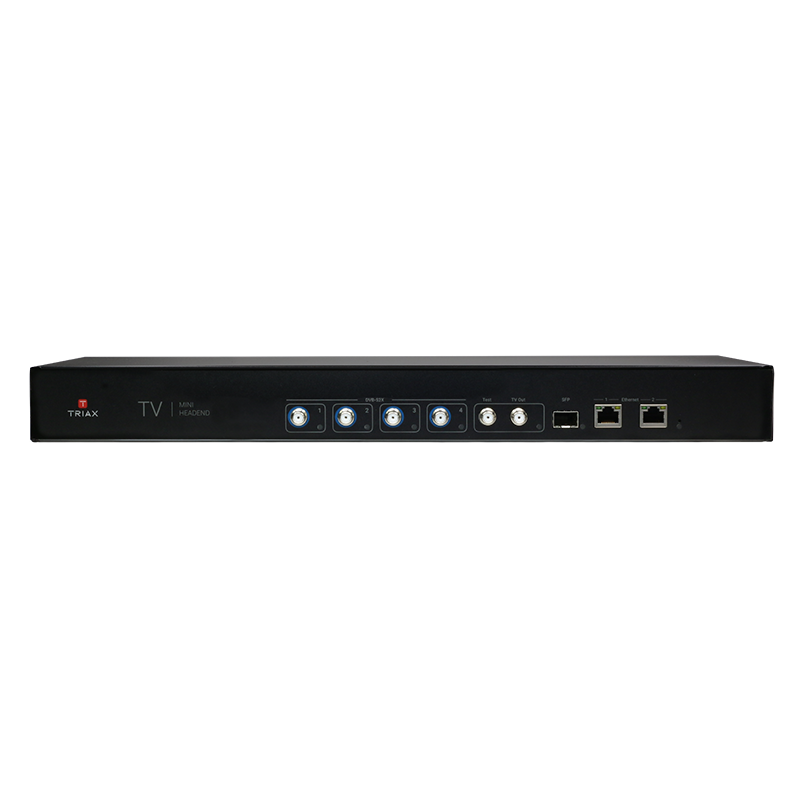

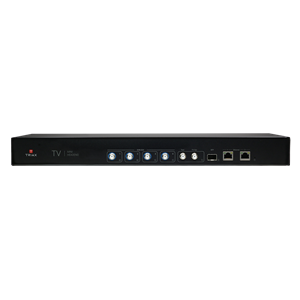

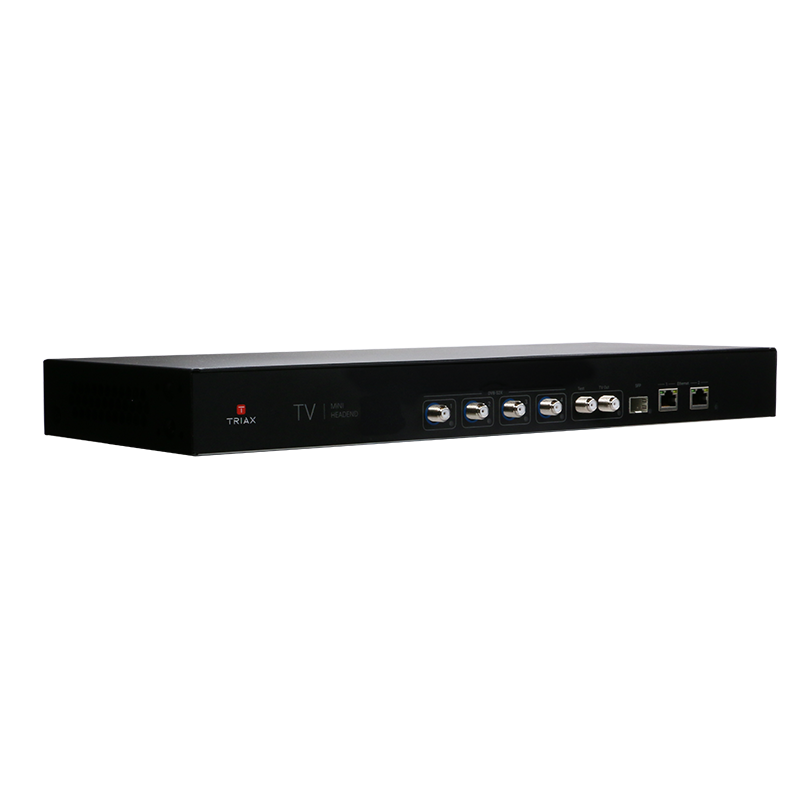

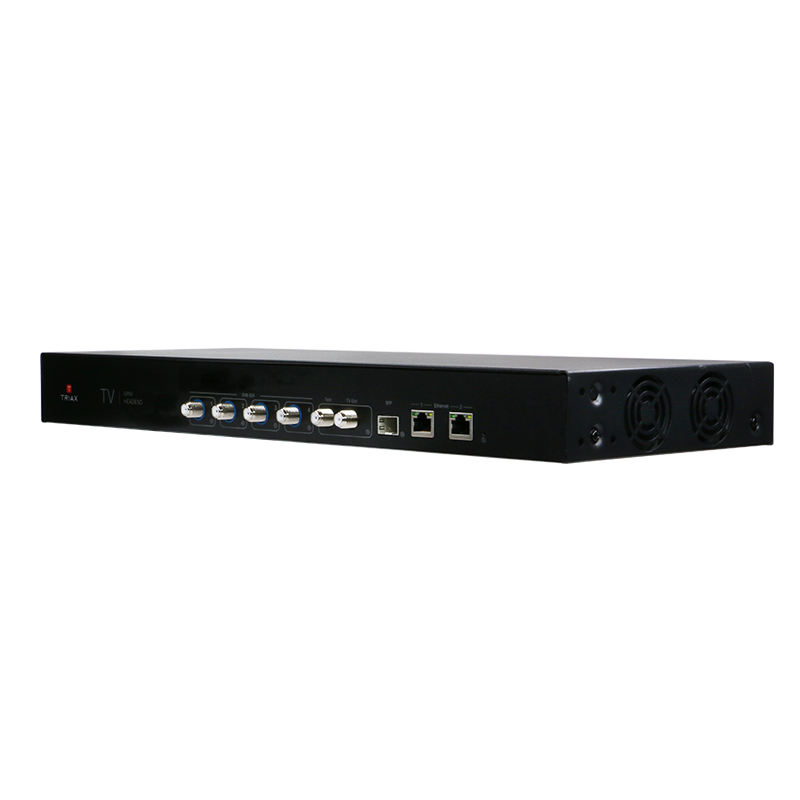

TDmH Mini Headend – 8S
Compact excellence
- Exquisite engineering, finely tuned for perfect performance
- Your natural choice for swift, efficient TV distribution
- Save time and costs, with fast, easy installation and remote management
- Compact design fits elegantly into 19” racks or as a wall mount unit
- Reliable, innovative headend expertise from TRIAX
Smooth integration
- Optimised channel setup with advanced multiplexing and Service Pool technology
- Integrated SCR multiswitch for cost, time and space saving
- No need for retuning TV sets in rooms thanks to SID and PID Management
- EPG Management ensures full Electronic Program Information (EPG) for better user experience
- Central decryption with CI slots, Free-To-Air version available
- Option for scrambling of premium services, supporting scrambling of Philips TV sets. Upcoming supporting scrambling for LG and Samsung TV sets
- Multiple language service allows for multiple distribution of a service with different audio (language) tracks
- IP-in and IP-out for receiving and streaming services. Possibility for simultaneous IP-in and IP-out through the same interface with optional VLAN tags for separating the in and out streams
Integrated SCR Multiswitch
- Increases the number of satellite positions that can be received in the TDcH/TDmH
- Increases the number of international TV services that can be distributed
- Save time, cost and space with less cabling and no need for an external multiswitch
- Reduced hardware for a cost optimised and compact solution
Service Pool and Multiplex technology
- 8 DVB-S/S2/S2X input signals
- 8 QAM or COFDM full band modulators (switchable)
- 48 IP-in SPTS and MPTS UDP/RTP (license required)
- 48 IP-out SPTS UDP/RTP (license required)
- Multiplexing at both RF output, IP output, scrambler and CAM (CI interface)
- Optimised service line-up within the available input and output modules
- More relevant TV services due to service multiplexing
Energy saving – long-term reliability
- Low power consumption
- Temperature controlled cooling system with integrated fans - increases the service life of the equipment
- The cooling system supports 19“ rack mounting as well as wall mounting
