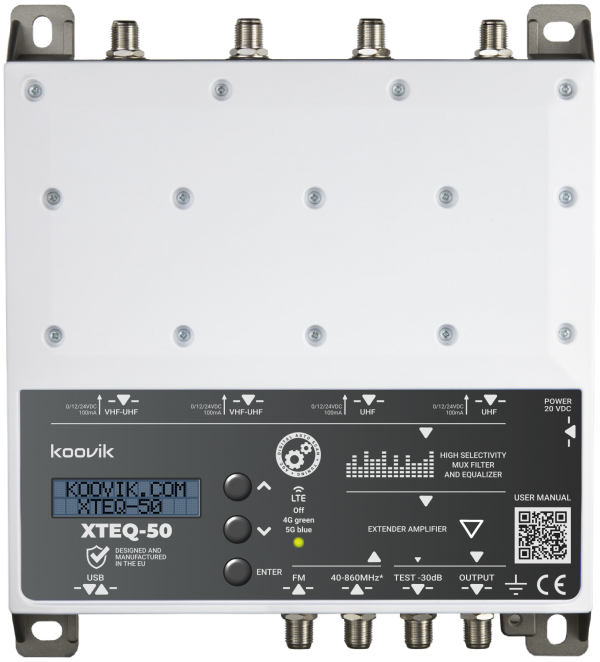

Forstærker XTEQ-50+ Koovik Multichannel
| NUMBER OF INPUTS | 6 | 1 FM; 2 UHF; 1 VHF/UHF; 1 DAB/UHF ; 1 AUX | ||||||
| INPUTS FREQUENCY RANGE | MHz |
FM (40-108) AUX (40-862) BIII/DAB (170-240) / UHF (470-694/862) |
||||||
| SINGLE CHANNEL FILTERS | 32 | |||||||
| NUMBER OF CHANNEL PER FILTERS | 1 | |||||||
| INPUT LEVEL RANGES | dBµV | FM (35-90) - BIII/DAB (40-110) - UHF (40-110) | ||||||
| UHF FILTERS SELECTIVITY | dB | 50 (Adjacent channels) | ||||||
| AUTOMATIC CONTROL GAIN RANGE | dB | 40 dB | ||||||
| VHF/UHF INPUTS AMPLIFIER GAIN | 0/+15/+30 | |||||||
| FM GAIN | dB | 45 (Adjustable 0 to -30 dB) | ||||||
| AUX GAIN | dB | 40 (Adjustable 0 to -20 dB) | ||||||
| VHF GAIN | dB | 60 | ||||||
| UHF GAIN | dB | 75 | ||||||
| SELECTABLE FILTERS BANDWIDTH | AUTO - NARROW/STANDARD/WIDE | |||||||
| OUTPUT LEVEL RANGE | dBµV | 99 to 119 | ||||||
| FILTER LEVEL ADJUSTER | dB | -5 to +5 (1 dB steps) | ||||||
| FILTER OFFSET ADJUSTER | KHz | -500 to +500 (125 KHz steps) | ||||||
| UHF ADJUSTABLE SLOPE | dB | 0 to -5 | ||||||
| VHF ADJUSTABLE OUTPUT | dB | 0 to 10 (1 dB step) | ||||||
| MAX TOTAL VHF-UHF OUTPUT LEVEL | dBμV | 126 (DIN 45004B) | ||||||
| INPUTS REMOTE POWER | 12V / 24V 100 mA | |||||||
| RETURN LOSS IN/OUT | dB | >12 | ||||||
| TEST OUTPUT | dB | -30 | ||||||
| AMPLIFIER POWERING | 100-240VAC 50/60Hz (External power supply 15VDC / 1.25A) | |||||||
| MAX AMPLIFIER CONSUMPTION + REMOTE POWER | W | 10.50 | ||||||
| OPERATING TEMPERATURE | °C | -5 to +50 | ||||||
| DIMENSIONS | mm | 192x217x37 | ||||||
| SET-UP | Built-in programmer with display and keyboard, Android or Windows PC Apps | |||||||
| INCLUDED | 1 x External power supply. Mains cable: Europlug CEE7/16 to IEC 60320-C7 VDE 2.5A/250V | |||||||
