AC3210 Dobbelt forst. 2x44dB

1.2 GHz bandwidth
Electrical adjustments
Forward amplifiers use the newest GaN HEMT technology
GaAs push-pull return amplifier on motherboard
Temperature compensated forward and return path
Excellent ESD and surge protection
Remote power supply with PFC
PC and Android user interface
With a transponder plug-in module:
- Remote ingress switch control
- ALSC with fully user programmable pilots
- Downstream spectrum analyser
- Upstream signal monitoring with automatic plug-in and ingress control
- True plug-and-play with single pushbutton alignment
- Return path pilot generator

65 vac.
KAN FÅS I 230 V. (IKKE LAGERVARE)

Ring for pris!

Antal

Køb

Varenummer 61561

1.2 GHz bandwidth
Electrical adjustments
Forward amplifiers use the newest GaN HEMT technology
GaAs push-pull return amplifier on motherboard
Temperature compensated forward and return path
Excellent ESD and surge protection
Remote power supply with PFC
PC and Android user interface
With a transponder plug-in module:
- Remote ingress switch control
- ALSC with fully user programmable pilots
- Downstream spectrum analyser
- Upstream signal monitoring with automatic plug-in and ingress control
- True plug-and-play with single pushbutton alignment
- Return path pilot generator

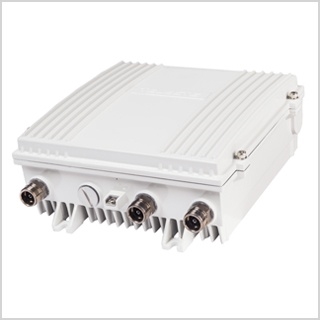

AC3210 is a dual active output amplifier with 48 dB maximum gain. It offers high output level (Umax 115.0 dBµV, 112 channels) and supports 1.2 GHz/204 MHz bandwith. Remote monitoring and control is available with transponder (HMS/CATVisor or DOCSIS).
